ONESPORT W66
ONESPORT W66
Electric Bicycle – All-Terrain Power & Comfort
The ONESPORT W66 is a 20-inch electric fat bike designed for those seeking power, stability, and versatility. In the city or on more demanding trails, it offers a comfortable and secure ride, ideal for daily commutes as well as leisure outings.
500W Motor – 65 Nm Torque
Its 48V 500W brushless motor delivers approximately 65 Nm of torque, allowing for dynamic starts and efficient assistance on inclines. The speed is limited to 25 km/h, in compliance with European regulations for road use.
48V 13.5Ah Battery – Up to 100 km Range
Equipped with a 48V / 13.5Ah battery (≈ 648 Wh), the W66 offers a range of up to 80 to 100 km in assistance mode depending on the rider's weight, terrain, and assistance level used.

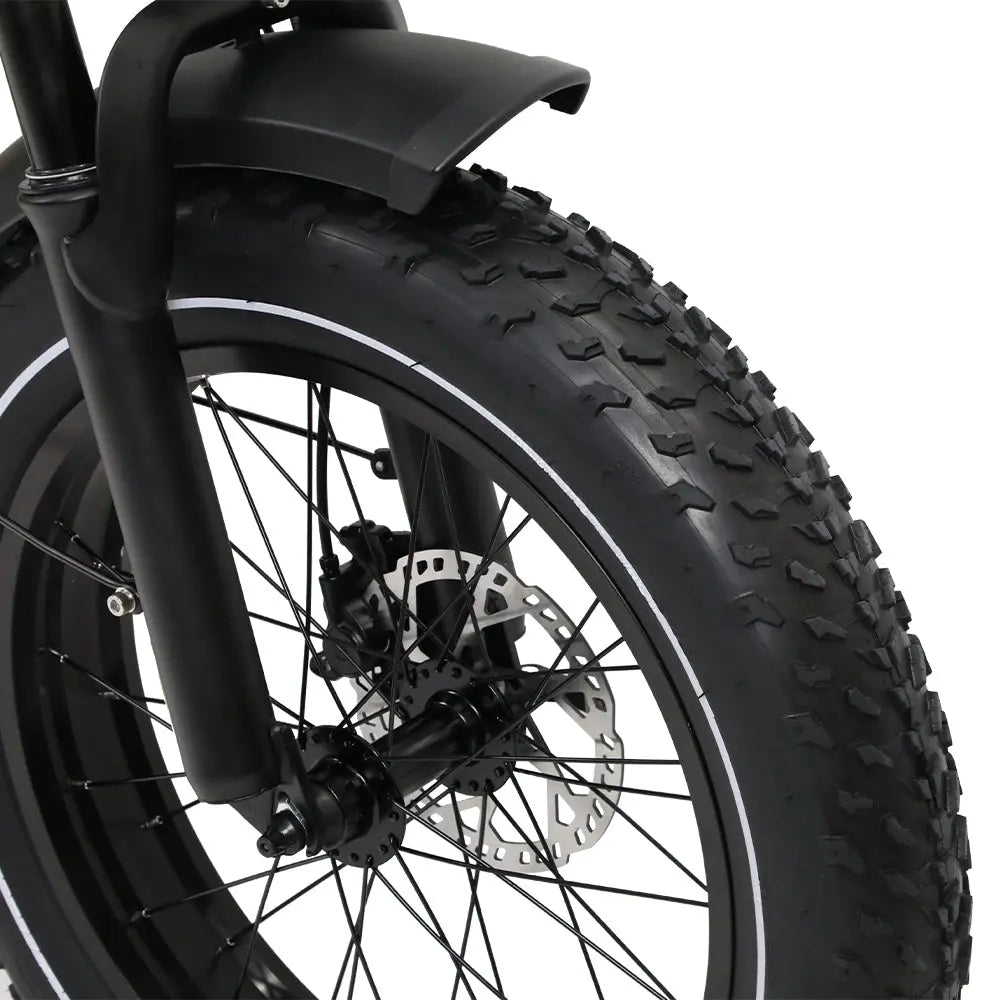

- Tires: 20″ × 4.0″ all-terrain fat bike, enhanced grip
- Brakes: Front and rear hydraulic disc brakes for powerful and progressive braking
- Suspension: Front suspension fork + rear shock absorber for improved comfort
- Weight: ~39 kg
- Maximum load: Up to 180 kg (rider + luggage)
- Protection rating: IPX4 (splash-resistant)
- Charging time: Approximately 7 to 8 hours
- Dimensions: ≈ 1,700 × 680 × 1,160 mm
The ONESPORT W66 is limited to 25 km/h in accordance with European regulations for electric assist bicycles. Wearing a helmet is strongly recommended for safe use.
Choose the ONESPORT W66 and enjoy a powerful, stable, and comfortable electric bike, suitable for both urban commutes and off-road adventures.
Page vérifiée par Avis Certifiés
Très bon confort et bonne maniabilité. Les pneus fat sont un vrai plus sur routes abîmées.
Vélo super confortable, la suspension absorbe très bien les bosses. Idéal pour mes trajets quotidiens en ville.
Page issue de la certification officielle des avis clients par Avis Certifiés.
FREE delivery 7 - 10 days
In stock
Couldn't load pickup availability
Technical Specifications
Technical Specifications
Technical Specifications of the ONESPORT W66
| Feature | Detail / Value |
|---|---|
| Model | ONESPORT W66 |
| Motor | 500 W brushless 48 V – torque ≈ 65 Nm |
| Battery | 48 V / 13.5 Ah (≈ 648 Wh) |
| Estimated Range | ≈ 80‑100 km depending on usage and assistance mode |
| Maximum Speed | 25 km/h certified |
| Tires | 20″ × 4.0″ – all-terrain "fat" tires |
| Brakes | Hydraulic disc brakes front + rear |
| Suspension | Full suspension (front fork + rear shock absorber) |
| Net Weight | ≈ 39 kg |
| Maximum Load | ≈ 180 kg |
| Protection Rating | ≈ IPX4 (splash resistant) |
| Charging Time | ≈ 7‑8 hours for a full charge |
| Manual / Source Link | 👉 ONESPORT W66 User Manual |
Dimensions
Dimensions
What are the dimensions of the ONESPORT W66?
| Characteristic | Detail / Estimated Value |
|---|---|
| Overall Length | ≈ 1,700 mm |
| Width (handlebars / chassis) | ≈ 680 mm |
| Overall Height | ≈ 1,160 mm |
| Seat Height (adjustable) | ≈ 850 mm |
| Package / Crate Dimensions | ≈ 1,460 × 300 × 850 mm |
| Tire Dimensions | 20″ × 4.0″ inches |
| Net Weight | ≈ 39 kg |
| Gross Weight / with packaging | ≈ 47.2 kg |
| Maximum Load | ≈ 180 kg |
Box contents
Box contents
What's in the Box?
| Item | Description |
|---|---|
| 1 × ONESPORT W66 Electric Bicycle | Main bicycle, partially assembled (frame, wheels, motor, battery installed) |
| 1 × 48 V / 18 Ah Lithium Battery | Removable, key-lockable, integrated into the frame (≈ 864 Wh) |
| 1 × 54.6 V / 2 A Charger | Allows full charge in 6 to 9 hours depending on battery capacity |
| 2 × Battery Keys | Allow safe locking and removal of the battery |
| 1 × Assembly Tool Kit | Includes Allen keys, wrenches, and screwdrivers for assembly and final adjustments |
| 1 × Pair of Pedals | Non-slip aluminum or rubber pedals, to be mounted (R / L) |
| 1 × Front and Rear Mudguard | Protects against splashes of mud and water |
| 1 × User and Assembly Manual | Assembly, safety, and maintenance instructions (PDF or printed depending on seller) |
| 1 × Quick Connect Cable (Display / Motor) | Allows easy connection of the display, controller, and motor |
| Various Accessories | Reflectors, bell, brake cables, extra screws, various protections |
FAQ
FAQ
ONESPORT W66 FAQ: All frequently asked questions
| Question | Answer |
|---|---|
| What is the bike's range? | Approximately 60 to 120 km depending on the battery (13 to 18 Ah), terrain, rider's weight, and assistance mode used. |
| What is the maximum speed? | 25 km/h (European legal limit). Can reach 30–35 km/h on private land depending on configuration and rider's weight. |
| How do I charge the battery? | Connect the supplied 48V charger (54.6V / 2A). Charging time: 6 to 9 hours depending on capacity. Removable and lockable battery with key. |
| Can I ride in the rain? | Yes, the W66 is splash-resistant (IP54–IP65), but avoid prolonged immersion or high-pressure jet washing. |
| How do I remove and install the battery? | Unlock the battery with the key, remove it by the handle, then reposition it on the rail and lock it again. |
| What maintenance is recommended? | Gentle cleaning with a damp sponge, checking tire pressure, chain lubrication, brake inspection, and tightening bolts every 200–300 km. |
| What should I do if an error code appears on the screen? | Turn off, remove the battery for 30 seconds, then turn it back on. If the problem persists, consult the manual or contact support. |
| What is the maximum allowed load? | Up to 180 kg (rider + accessories). |
| Where can I find the complete manual? | The official manual is available here: 👉 Full ONESPORT W66 Manual |
